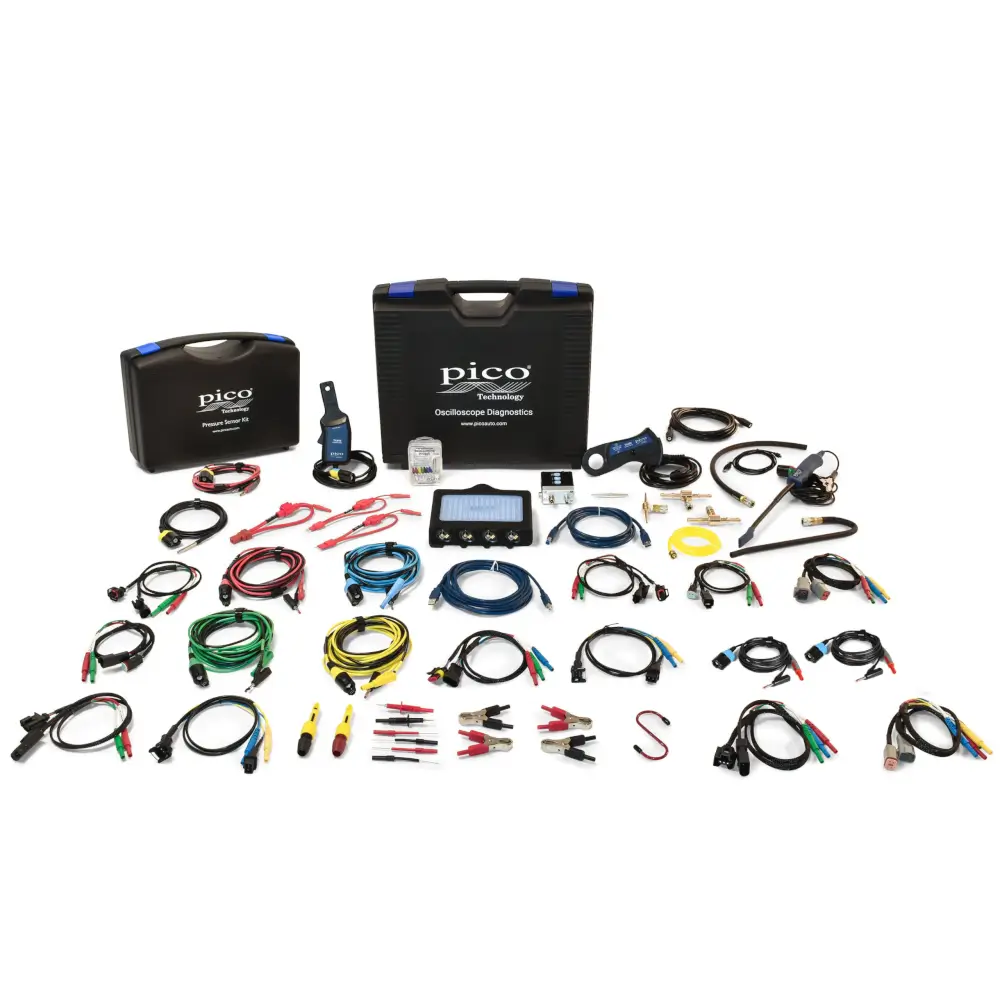

PicoScope Off-Highway Expert Kit

$ 5,256
This kit contain a modified PS4425A PicoScope having additional protection to better withstand off-highway conditions. The included accessories help users quickly connect and easily carry out non-intrusive and non-invasive measurements on a wide variety of systems and components found in these vehicles.
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    PQ331

Pico Technology is now offering a set of new off-highway kits, suitable for Heavy-Duty vehicle and Off-Highway (HD-OH) equipment testing. Created for fault diagnosis on trucks, tractors, forklifts, boats, combine harvesters, excavators and more, the off-highway kits open up new markets and opportunities for you. In support of the new off-highway kits, Pico Technology will be releasing an initial set of ten HD-OH guided tests in our PicoScope software. The tests include information and materials to help HD-OH technicians start their oscilloscope diagnostics journey. Specifically, the tests cover 24 V battery, Bosch Denoxtronic, J1939 communications, engine and hydraulic system and component testing.

Bare Scope Module Only.

Support and essential components are not included!

You should generally only purchase bare modules as a replacement when you already own a kit.

For included training & support, or to get started with PicoScopes, check out our kits.

Bare scope modules do not come with an Autonerdz Training & Support subscription.

PicoScope Off-Highway Expert Kit
 is available in these kits:

No items found.

Contents

1x

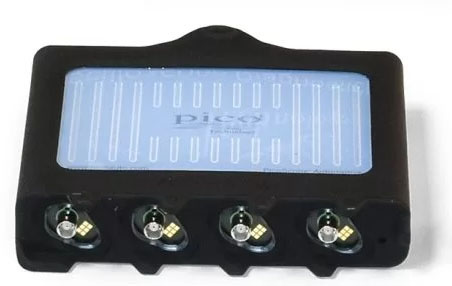

Off-Highway 4425A-099 Scope

Created for fault diagnosis on trucks, tractors, forklifts, boats, combine harvesters, excavators and more, the off-highway PicoScopes open up new markets and opportunities for you.

In support of the new off-highway kits, Pico Technology will be releasing an initial set of ten HD-OH guided tests in the PicoScope software. The tests include information and materials to help HD-OH technicians start their oscilloscope diagnostics journey. Specifically, the tests cover 24 V battery, Bosch Denoxtronic, J1939 communications, engine and hydraulic system and component testing.

Specifications:

  • 4 channels
  • Up to 400 MS/s realtime sample rate
  • 20 MHz bandwidth
  • 250,000,000 sample memory
  • 200 V input range Floating inputs
  • ConnectDetect for reliable connections
  • No external power supply required
  • Protected against overloads and short circuits
  • CAN bus and FlexRay compatible
  • Use with any vehicle
  • Easy to use
  • Includes PicoScope Automotive software
  • Free software updates
  • 24 month warranty for the scope module, 12 month warranty for accessories
    Please click here for the Autonerdz recommended PC specifications

Training & Support

1x
Complementary Support & Training.
Access to the PicoGroup Forums, The Nerdz Series, and more training and support resources.
Click here to learn more.
