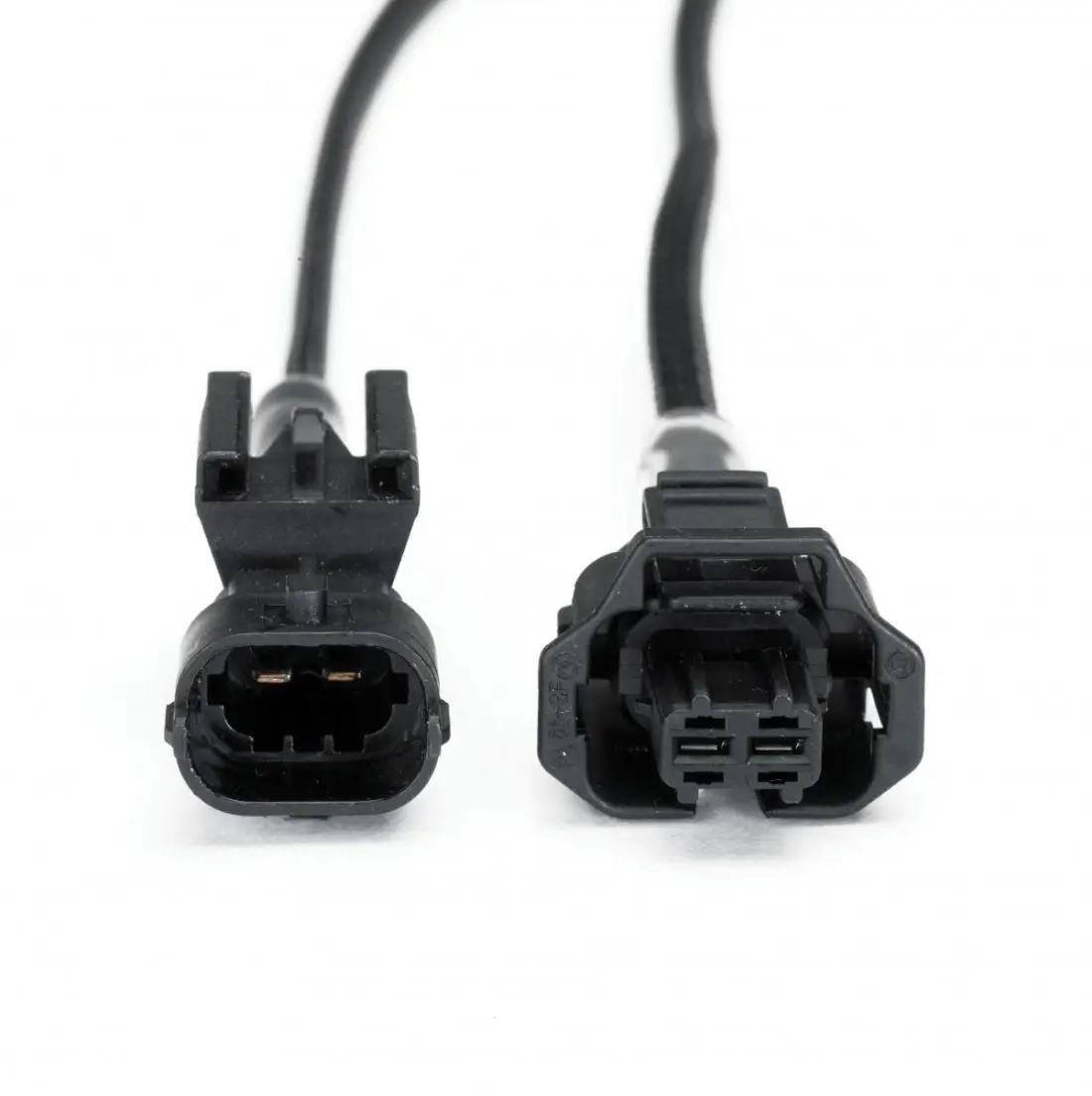

2-pin ACS connector breakout lead

$ 45
This connector breakout lead enables you to take voltage readings from the numerous sensors and actuators in the engine compartment.
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    TA190
Need help?  Call the Nerdz!
Get support for your
2-pin ACS connector breakout lead
when you join PicoGroup – access training, join our forum, and get support.
Click to learn more!

Other
Breakout Leads/Boxes
to consider

Fuse extension leads kit
$ 123
Pico Can Test Box
$ 307
Mini fuse extension lead
$ 29
Maxi fuse extension lead
$ 34
Small Delphi injector connector breakout lead
$ 59
Complete Universal 6-way Breakout Lead kit
$ 125
View all
Breakout Leads/Boxes
Not sure which kit is best for you?
Call the Nerdz!
We're here to help.

This connector breakout lead enables you to take voltage readings from the numerous sensors and actuators in the engine compartment. Simply connect the breakout lead into the existing cable loom, and then take the output signal from the 4 mm banana plugs into the automotive oscilloscope using one of the TA125 to TA128 premium test leads. The breakout cable gives access to the individual wires to allow probing with current clamps. For example, this allows both injector current and injector voltage to be captured.Note: the test lead is required to convert the 4 mm banana plug connection on the connector breakout leads to a BNC connector suitable for plugging into the PicoScope.
