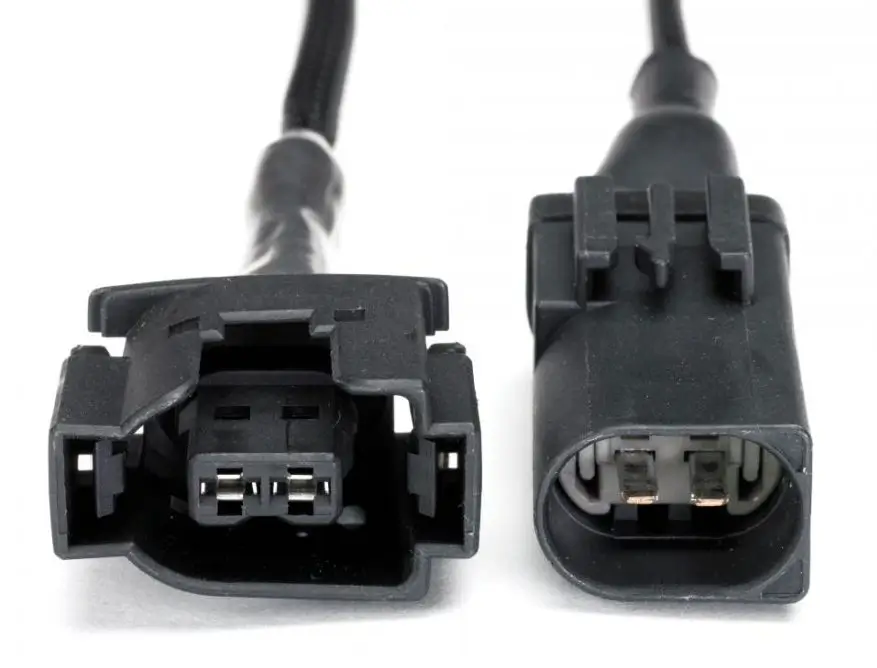

These connector breakout leads enable voltage readings to be taken from the numerous sensors and actuators in the engine compartment. The required connector breakout lead is simply connected into the existing cable loom, and the output signal can then be taken from the 4 mm banana plugs into the automotive oscilloscope using TA125 to TA128 premium test leads. The breakout cable has been designed with separate access to the individual wires to allow probing with current clamps. As an example this allows both injector current and injector voltage to be captured.Note: the test lead is required to convert the 4 mm banana plug connection on the connector breakout leads to a BNC connector suitable for plugging into the PicoScope.
You should generally only purchase bare modules as a replacement when you already own a kit.
For included training & support, or to get started with PicoScopes, check out our kits.
Bare scope modules do not come with an Autonerdz Training & Support subscription.
