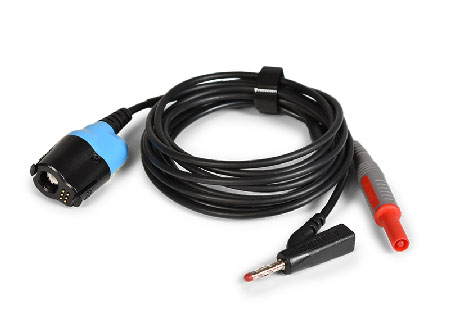

Thecompact design of the TA506 contains the entire attenuator circuit of a traditional oscilloscope probe, but within a 4 mm connector body. With a fixed x10 attenuation it is intended for high-speed signals like CAN, FlexRay and also for higher voltage signals such as primary ignition.
The TA506 is automatically recognized by PicoScope software when connected to the scope. This accessory is only available for PicoBNC+ and will not work with older PicoScope models.
Increases the PicoScope input impedance to 10M.
You should generally only purchase bare modules as a replacement when you already own a kit.

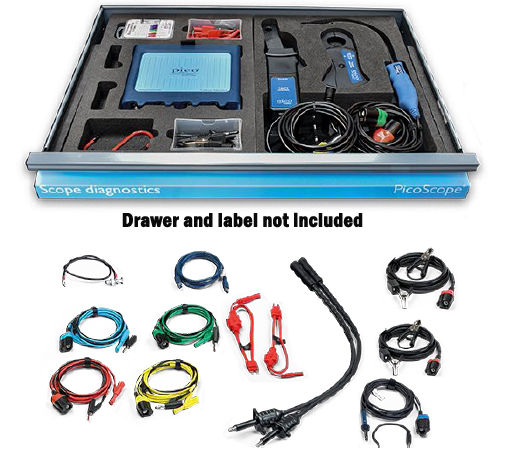

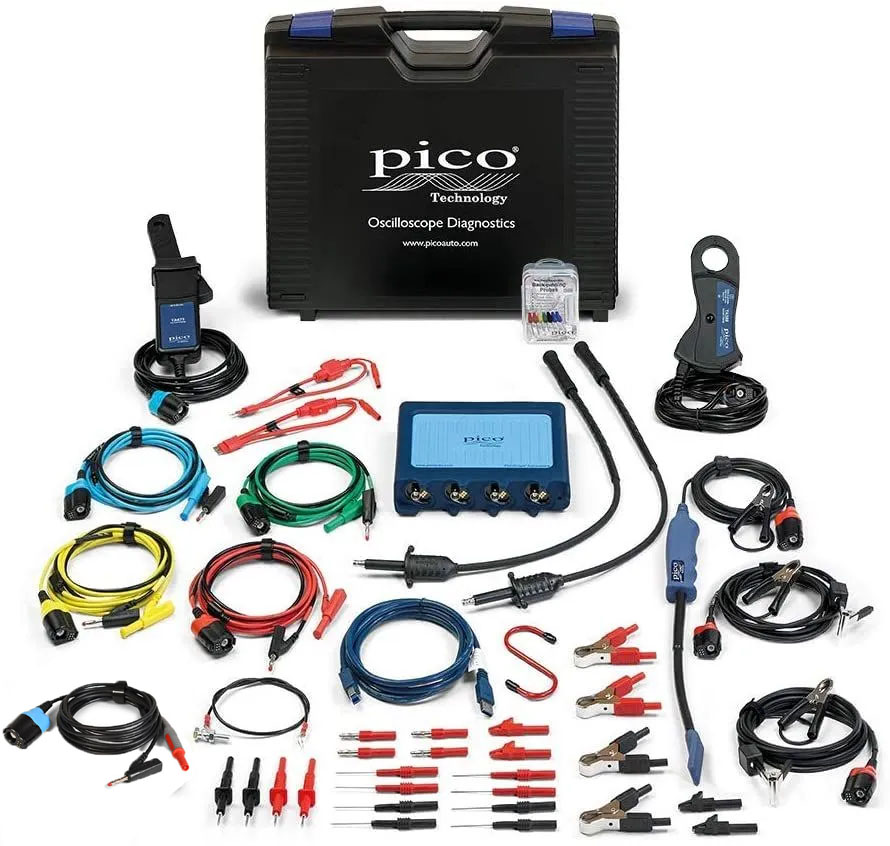

For included training & support, or to get started with PicoScopes, check out our kits.
Bare scope modules do not come with an Autonerdz Training & Support subscription.
