Pico connector breakout leads enable you to take voltage readings from the numerous sensors and actuators in the engine compartment.
Simply connect the breakout lead into the existing cable loom, and then take the output signal from the 4 mm banana plugs into the automotive oscilloscope using one of the TA125 to TA128 premium test leads. The breakout cable gives access to the individual wires to allow probing with current clamps. For example, this allows both injector current and injector voltage to be captured.

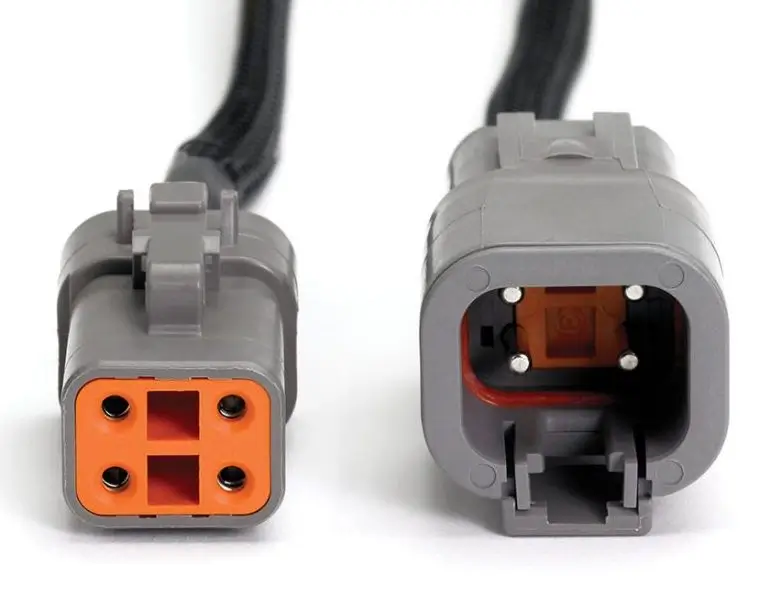

The T205 is based around the Deutsch DTPXX-4 connector and is ideal for connecting into the Injector circuit on many larger engines such as those used by IVECO, Case International and New Holland.
_ Note: the test lead is required to convert the 4 mm banana plug connection on the connector breakout leads to a BNC connector suitable for plugging into the PicoScope._
