PicoScope 4425A Engine & Hydraulics kit in case

$ 5,556
Combination of the Diesel Kit with two WPS600C Hydraulic Pressure Transducers.
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    PQ195
Need help?  Call the Nerdz!
Get support for your
PicoScope 4425A Engine & Hydraulics kit in case
when you join PicoGroup – access training, join our forum, and get support.
Click to learn more!

Other
4 Channel PicoScope Kits
to consider

PicoScope 4425A 4-Ch Standard Diagnostic Kit
$ 3,370
4-Channel Pico 4425A Advanced Diagnostic Kit
$ 4,410
4-Channel Pico 4425A MASTER Diagnostic Kit
$ 7,445
PicoScope 4425A 4-Ch Standard Diagnostic Kit In Foam
$ 3,401
4-Channel Pico 4425A Master Kit with Foam Storage Trays
$ 7,429
PicoScope 4425A Master kit with case and foam
$ 7,445
View all
4 Channel PicoScope Kits
Not sure which kit is best for you?
Call the Nerdz!
We're here to help.

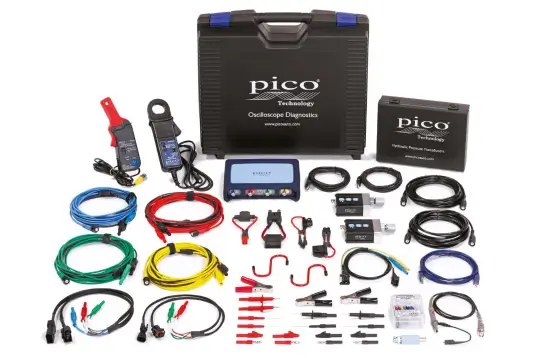

Engine and Hydraulics involves comprehensive diagnostics and analysis and our new Kit is perfectly suited to this. It is a combination of ourDiesel Kitwith twoWPS600C Hydraulic Pressure Transducers, enabling you to diagnose faults quickly and accurately on many different types of mobile machinery.
By combining the high-precision hydraulic transducers with this Kit, you can now look at hydraulic pressures in the same time frame as the engine control signals giving complete visibility of how the system is operating. You can see the exact moment valves start to move in the hydraulic system and compare this directly to the relevant electronic controls.
You can also investigate stalling and 'no start' conditions due to the comprehensive coverage of engine and electrical systems.

With PicoScope you have direct access to over 150 built-in guided tests covering engine and electrical sensors, actuators and systems. These include both voltage and current measurements and cover camshaft, crankshaft, oxygen sensors, injectors and many more. These tests give you a head start in diagnosing and fixing engine faults right first time; when combined with the hydraulic system they allow diagnosis of complex interactions of the hydraulic and engine systems.
2 Carry Cases are also provided or you can choose to store your Kit in Foam.
You can expand your Kit as necessary thereby increasing the number of tests you can perform by purchasing extra accessories.

Contents

1x
PicoScope 4425A 4-Ch Scope

Specifications:

  • 4 channels
  • Up to 400 MS/s realtime sample rate
  • 20 MHz bandwidth
  • 250,000,000 sample memory
  • 200 V input range Floating inputs
  • ConnectDetect for reliable connections
  • No external power supply required
  • Protected against overloads and short circuits
  • CAN bus and FlexRay compatible
  • Use with any vehicle
  • Easy to use
  • Includes PicoScope Automotive software
  • Free software updates
  • 24 month warranty for the scope module, 12 month warranty for accessories
    Please click here for the Autonerdz recommended PC specifications

Bare Scope Module Only.

Support and essential components are not included!

You should generally only purchase bare modules as a replacement when you already own a kit.

For included training & support, or to get started with PicoScopes, check out our kits.

Bare scope modules do not come with an Autonerdz Training & Support subscription.

PicoScope 4425A Engine & Hydraulics kit in case
 is available in these kits:

No items found.

Training & Support

1x
Complementary Support & Training.
Access to the PicoGroup Forums, The Nerdz Series, and more training and support resources.
Click here to learn more.
