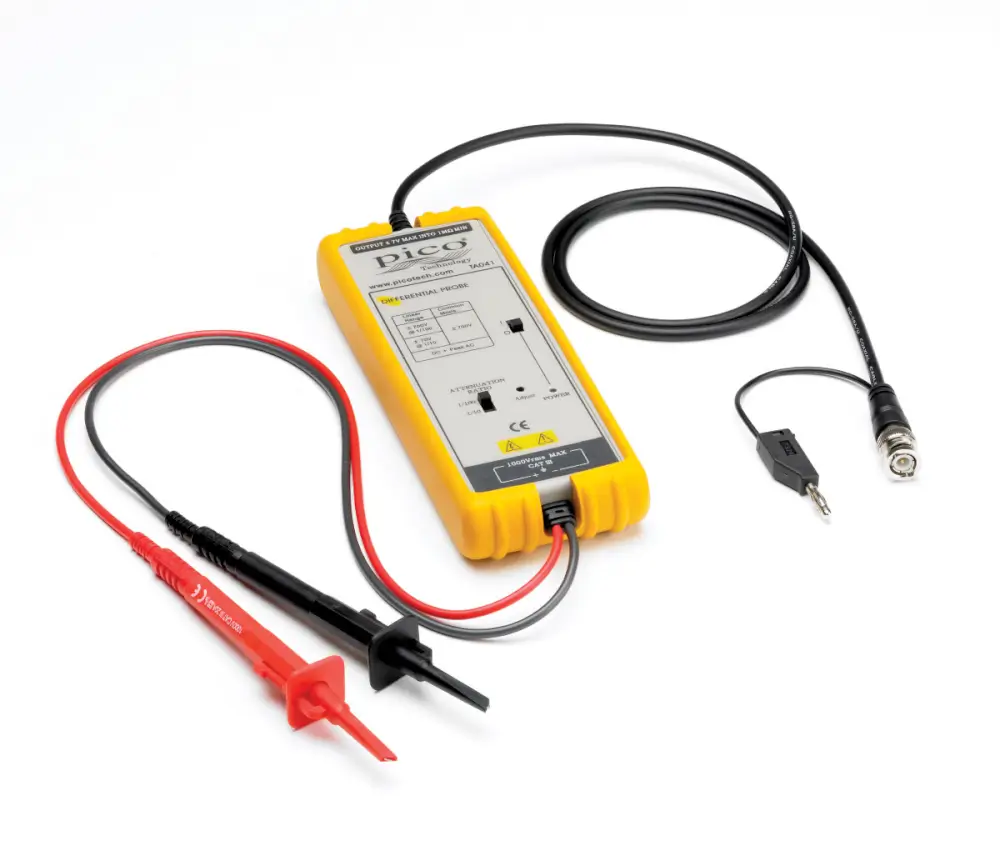

Differential Probe: x10/x100 25MHz 700V CATIII

$ 479
Safely measure up to 700 volts
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    TA041

TA041 differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high-voltage differential measurements. Applications include making safe measurements in power circuit applications and acquisition of low-speed balanced differential signals found in serial communications buses.
Specs:

  • Signal speeds of up to 25 MHz
  • Up to 700 V (DC + peak AC)
  • Battery powered (PS008 power supply option)

Includes:Four AA batteries

Pico Milliohm and Motor Tester Starter Kit
$ 853
PicoScope 4425A EV upgrade kit in foam
$ 2,215
PicoScope 4425A EV upgrade kit
$ 2,463
USB Power lead for differential probe range
$ 16

Bare Scope Module Only.

Support and essential components are not included!

You should generally only purchase bare modules as a replacement when you already own a kit.

For included training & support, or to get started with PicoScopes, check out our kits.

Bare scope modules do not come with an Autonerdz Training & Support subscription.

Differential Probe: x10/x100 25MHz 700V CATIII
 is available in these kits:

No items found.

Contents

1x

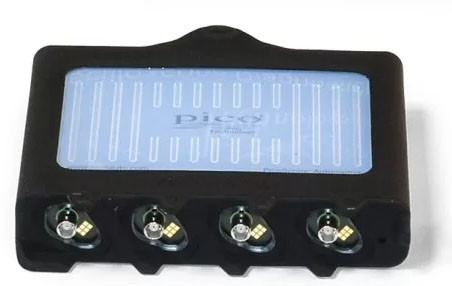

Off-Highway 4425A-099 Scope

Created for fault diagnosis on trucks, tractors, forklifts, boats, combine harvesters, excavators and more, the off-highway PicoScopes open up new markets and opportunities for you.

In support of the new off-highway kits, Pico Technology will be releasing an initial set of ten HD-OH guided tests in the PicoScope software. The tests include information and materials to help HD-OH technicians start their oscilloscope diagnostics journey. Specifically, the tests cover 24 V battery, Bosch Denoxtronic, J1939 communications, engine and hydraulic system and component testing.

Specifications:

  • 4 channels
  • Up to 400 MS/s realtime sample rate
  • 20 MHz bandwidth
  • 250,000,000 sample memory
  • 200 V input range Floating inputs
  • ConnectDetect for reliable connections
  • No external power supply required
  • Protected against overloads and short circuits
  • CAN bus and FlexRay compatible
  • Use with any vehicle
  • Easy to use
  • Includes PicoScope Automotive software
  • Free software updates
  • 24 month warranty for the scope module, 12 month warranty for accessories
