PicoDiagnostics Advanced NVH Essentials Kit w/ Optical

$ 4,821
The PicoDiagnostics NVH Kit from Pico Technology is the cost–effective answer to the many NVH problems facing technicians today.
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    pq271
Need help?  Call the Nerdz!
Get support for your
PicoDiagnostics Advanced NVH Essentials Kit w/ Optical
when you join PicoGroup – access training, join our forum, and get support.
Click to learn more!

Other
Noise Vibration Harhsness (NVH)
to consider

PicoDiagnostics NVH Starter Kit w/Carry Case
$ 719
PicoDiagnostics NVH Starter Kit w/Foam Storage Tray
$ 719
PicoDiagnostics Standard NVH Kit w/ Carry Case
$ 1,346
PicoDiagnostics Standard NVH Kit w/ Foam Storage Trays
$ 1,345
PicoDiagnostics Advanced NVH Kit w/ Carry Case
$ 2,631
PicoDiagnostics Advanced NVH Kit w/ Foam Trays
$ 2,651
View all
Noise Vibration Harhsness (NVH)
Not sure which kit is best for you?
Call the Nerdz!
We're here to help.

The PicoDiagnostics NVH Kit from Pico Technology is the costeffective answer to the many NVH problems facing technicians today. Providing real-time diagnosis to the technician in the form of either: a bar graph, a frequency chart, a 3D frequency chart, RPM order or road speed view. The ability to start the recording before a road test, and play back the recording for analysis on your return, ensures that driver attention remains on the road. Saving the recordings couldn't be simpler: much like our other automotive software you simply save the file to your laptop's hard drive.

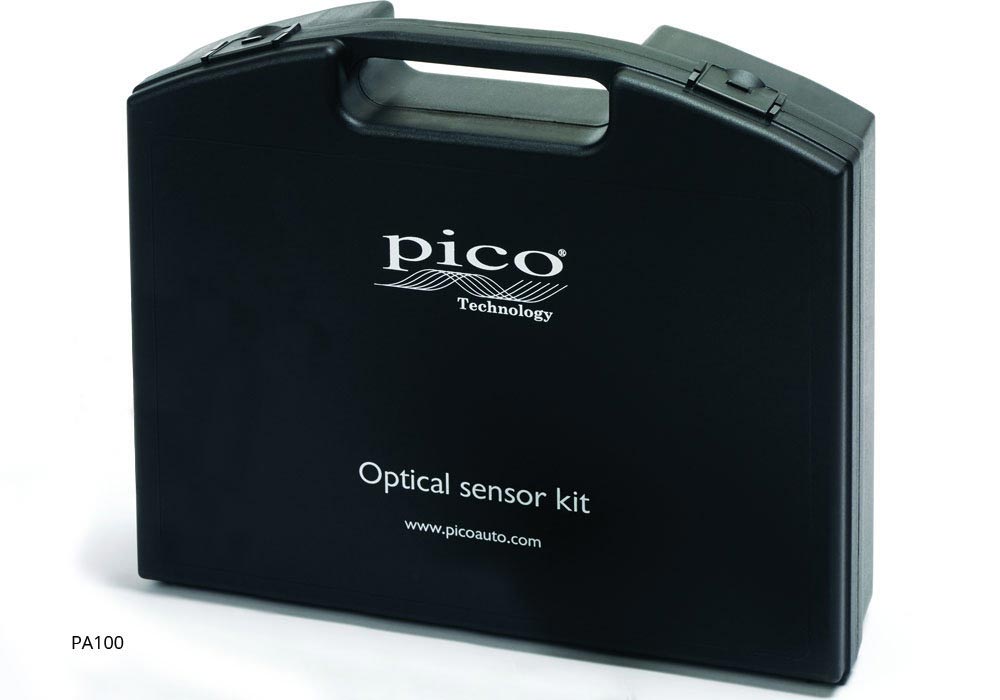

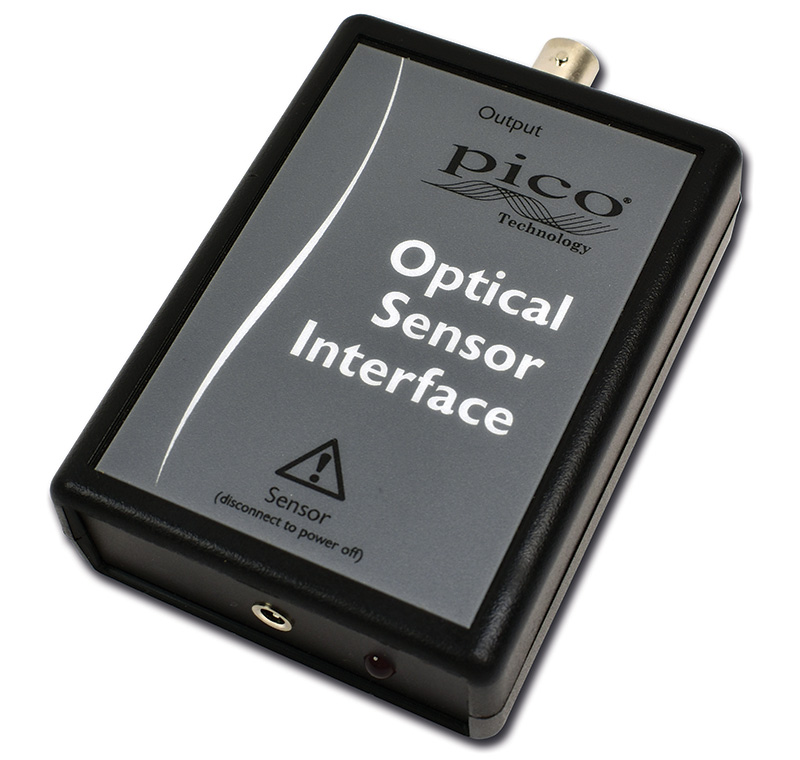

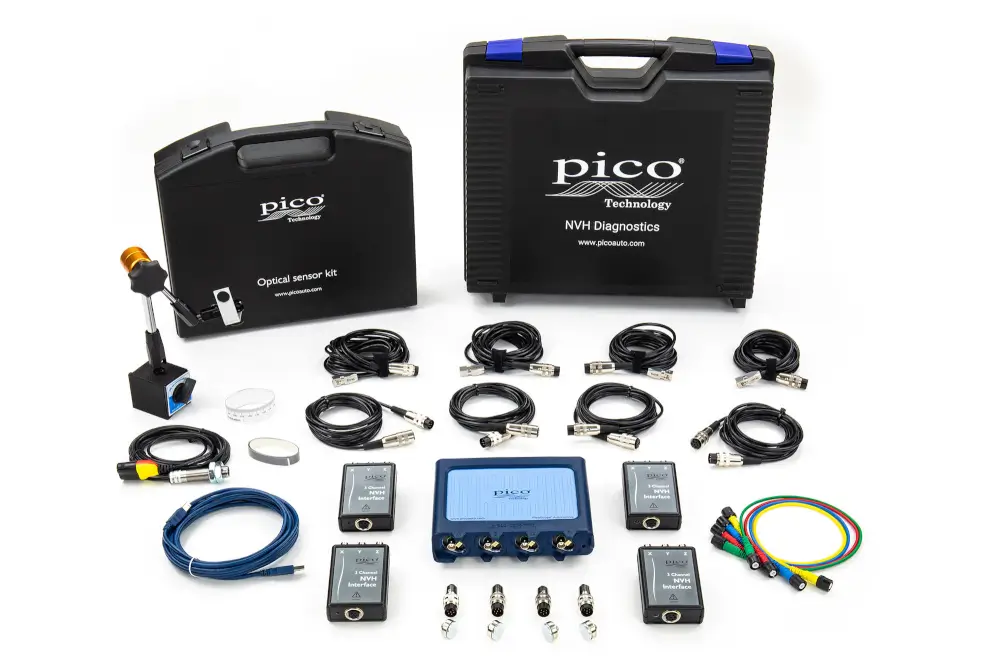

The PicoDiagnostics NVH kit includes a 4425A Automotive Oscilloscope and Optical Kit.

A Separate J2534 Scantool or VCI can be used to provide RPM data, but is not included in the kit. The MongoosePro will work with CAN and ISO 9141 protocol's and is sold separately.

  • Full screen, highresolution results are presented clearly and accurately
  • No external memory required saves directly to laptop or PC
  • Record up to 500 seconds of data
  • Automatic analysis
  • Detects multiple vehicle vibrations
  • Customer report function
  • Plugs into your automotive PicoScope (sold separately)

The NVH kit from Pico Technology requires an unlock key in order to allow your specific PicoScope to work with the NVH software, one key is included with each kit. This unlock key is limited to one PicoScope automotive scope and is not transferable.

PicoScope 4425A Automotive Oscilloscope and Optical Kit included.

Contents

1x
PicoScope 4425A 4-Ch Scope

Specifications:

  • 4 channels
  • Up to 400 MS/s realtime sample rate
  • 20 MHz bandwidth
  • 250,000,000 sample memory
  • 200 V input range Floating inputs
  • ConnectDetect for reliable connections
  • No external power supply required
  • Protected against overloads and short circuits
  • CAN bus and FlexRay compatible
  • Use with any vehicle
  • Easy to use
  • Includes PicoScope Automotive software
  • Free software updates
  • 24 month warranty for the scope module, 12 month warranty for accessories
    Please click here for the Autonerdz recommended PC specifications

Bare Scope Module Only.

Support and essential components are not included!

You should generally only purchase bare modules as a replacement when you already own a kit.

For included training & support, or to get started with PicoScopes, check out our kits.

Bare scope modules do not come with an Autonerdz Training & Support subscription.

PicoDiagnostics Advanced NVH Essentials Kit w/ Optical
 is available in these kits:

No items found.
