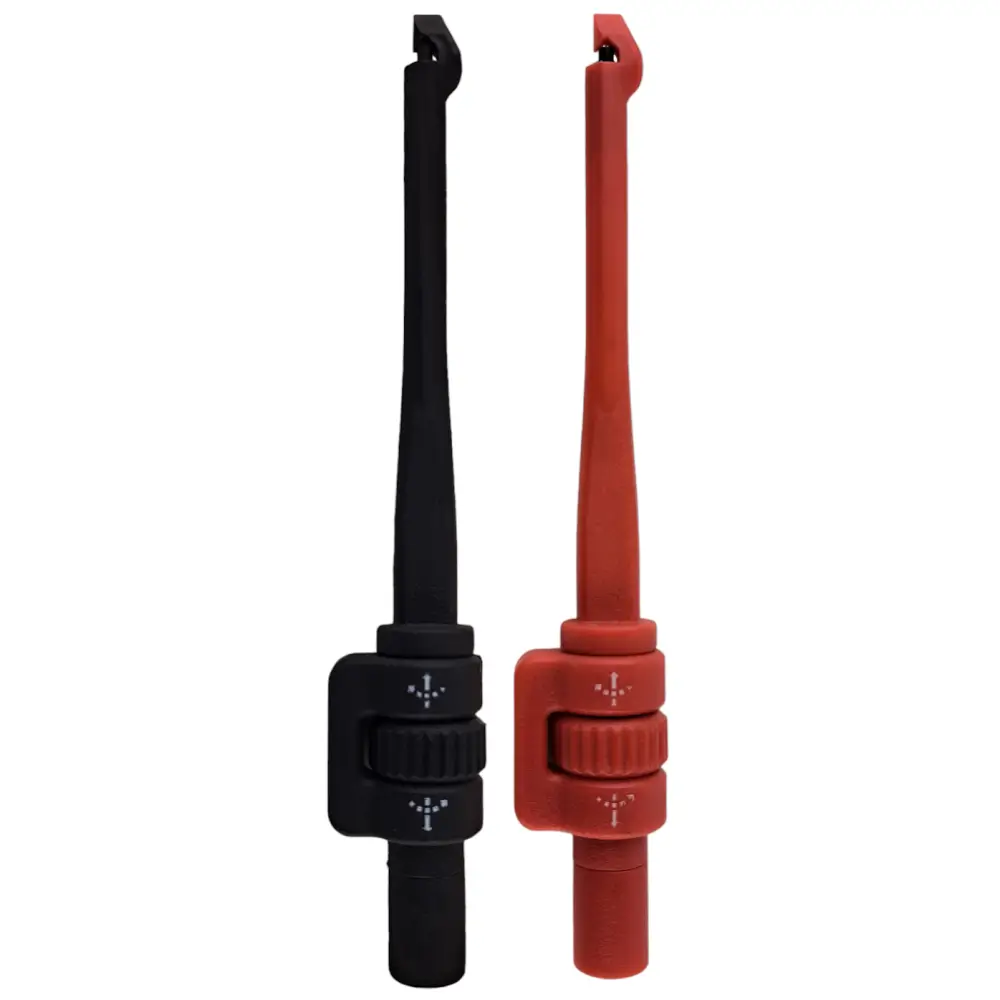

uSignalTap Wire Piercing Probe Set - 1xRed and 1xBlack

$ 20
Designed for minimum impact access to the wire conductor for electronic testing.
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    05-790-Set
Need help?  Call the Nerdz!
Get support for your
uSignalTap Wire Piercing Probe Set - 1xRed and 1xBlack
when you join PicoGroup – access training, join our forum, and get support.
Click to learn more!

Other
Clips Probes and Adaptors
to consider

uSignalTap Wire Piercing Probe Set - 1xRed and 1xBlack
$ 20
Small Crocodile/Gator Clip (Red)
$ 3
uMicroBackProbeKit
$ 19
Small Crocodile/Gator Clip (Black)
$ 3
Large Dolphin/Gator Clip (Black)
$ 12
Large Dolphin/Gator Clip (Red)
$ 12
View all
Clips Probes and Adaptors
Not sure which kit is best for you?
Call the Nerdz!
We're here to help.

The uSignalTap is a wire insulation piercing probe designed for minimum impact access to the wire conductor for electronic testing. The uSignalTap features a 4 mm banana socket ready to connect to your 4mm banana plug test leads with open banana plug or safety sheath! Needle operation is via an independent thumb screw that does not spin your connected test lead! The uSignalTap features: - "No Spin" 4mm Safety banana sockets - Flat textured control surface - Minimum profile for tight spaces - Needle tip max wire O.D. 0.150" - 6.5 long When you decide to pierce, pierce responsibly! 1. Thoroughly clean desired pierce area. 2. Retract needle. 3. Insert wire into the v-groove. 4. Apply some pull to keep the wire centered in the v-groove. 5. Turn thumbwheel to pierce the wire and make contact. If meter is connected, monitor meter to know when contact is made. 6. Try not to go through the whole wire. 7. When complete, seal puncture with liquid tape or nail polish.NOTE: Do not use the uSignalTap to pierce non-stranded (solid conductor) wire.

Contents

No items found.

Bare Scope Module Only.

Support and essential components are not included!

You should generally only purchase bare modules as a replacement when you already own a kit.

For included training & support, or to get started with PicoScopes, check out our kits.

Bare scope modules do not come with an Autonerdz Training & Support subscription.
