how to take apart toyota corolla connector (Read 6,069 times)
tommy
Freshman Member
Picogroup
*
Offline



Posts: 5

SF Bay Area, California, USA
SF Bay Area
California
USA

Gender: male
how to take apart toyota corolla connector
Sep 3rd, 2014 at 9:26pm

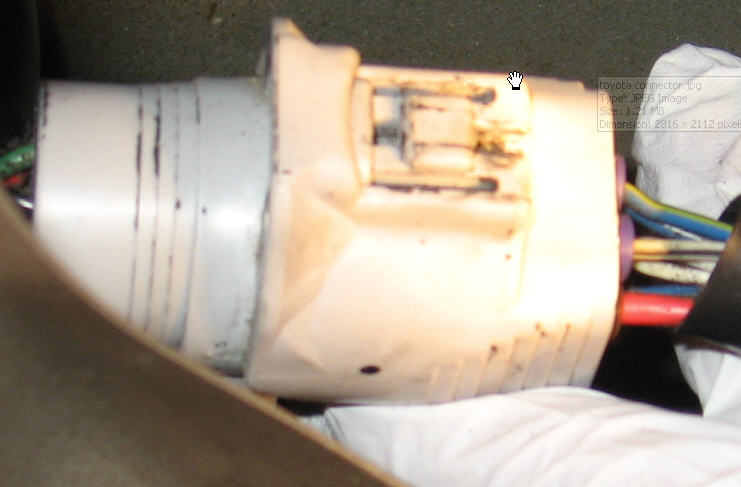

Attached is a photo of the connector to power lock solenoid. I need to take apart this connector to allow me to remove a broken power window regulator, the power lock cable is routed thru the cables of the window regulator. I've tried twisting and pulling, pushing on the small tab and lifting the small tab but still unable to take apart this connector. so does anyone know the secret for taking this connector apart?
Back to top


IP Logged

Anthony Lamb
Super Nerd
Picogroup
*****
Offline



Posts: 1,202

Brisbane, Queensland, Australia
Brisbane
Queensland
Australia

Gender: male
Re: how to take apart toyota corolla connector
Reply #1 - Sep 4th, 2014 at 6:36am

Most of them once they age need to be pushed together and the have the tab pryed up with a pocket screw driver, then pull apart. It may take a few goes to get it to budge.

Failing that try some compressed air to blow the grit out of it and retry.
Back to top


IP Logged

tommy
Freshman Member
Picogroup
*
Offline



Posts: 5

SF Bay Area, California, USA
SF Bay Area
California
USA

Gender: male
Re: how to take apart toyota corolla connector
Reply #2 - Sep 4th, 2014 at 9:47pm

Thanks for the tip, working the connector back and forth and flexing the tab really helped, the actual release of the connector requires pushing down on the tab and with enough force - really had to tug on it, it finally came apart Smiley
Back to top


IP Logged

Bphillips
Freshman Member
Picogroup
*
Offline


I'm an Autonerd

Posts: 45

Boise, Idaho, USA
Boise
Idaho
USA

Gender: male
Re: how to take apart toyota corolla connector
Reply #3 - Oct 26th, 2014 at 10:31am

I know this thread is kinda old and the issue has been resolved, but, when i come across a stuck connector (especially VW) I grab my heat gun and warm it up a bit.  Very rarely does this not work.  This is of course after cleaning the connector as best I can to get any road grime ouyt of it.
