Due to the high voltages involved in secondary ignition systems, it is not possible to make measurements by direct connection. Attempting to make a direct connection will almost certainly damage the measuring instrument.

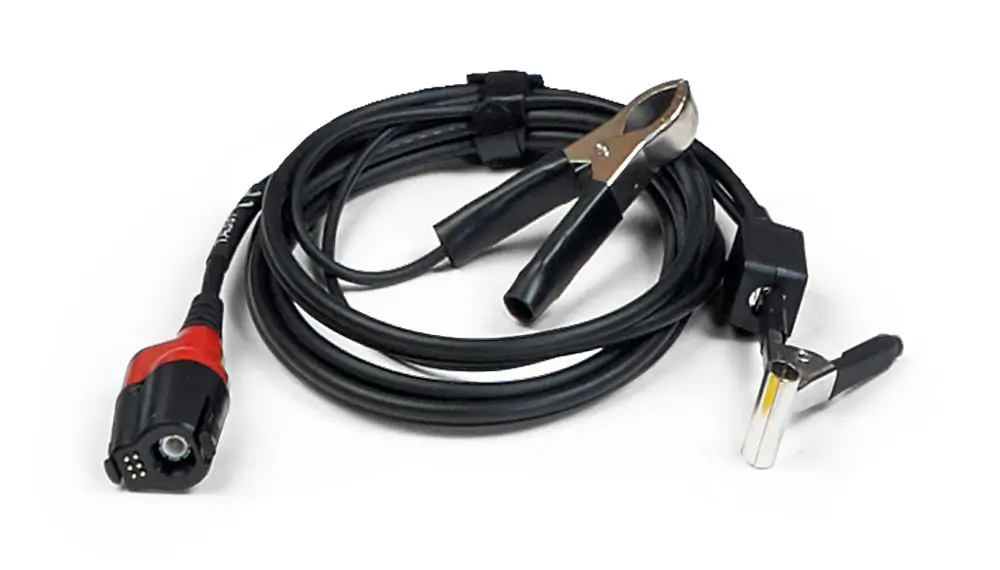

The TA397 is a capacitive pickup that simply connects around the insulation of an ignition circuit component such as a plug wire. This avoids the need for direct connection. The TA397 comes with a shielded 1.8 m (6 foot) lead. It is suitable for use with conventional ignition systems and most HEI and DIS systems.
Our library of Automotive Waveforms contains example waveforms captured using a PicoScope automotive oscilloscope and the TA398 or the MI074 BNC version. This lead is fitted with a PicoBNC+ interface, allowing it to be recognised by the software for auto-configuration. The lead requires a PicoScope featuring the PicoBNC+ such as the 4225A or 4425A.
You should generally only purchase bare modules as a replacement when you already own a kit.
For included training & support, or to get started with PicoScopes, check out our kits.
Bare scope modules do not come with an Autonerdz Training & Support subscription.
