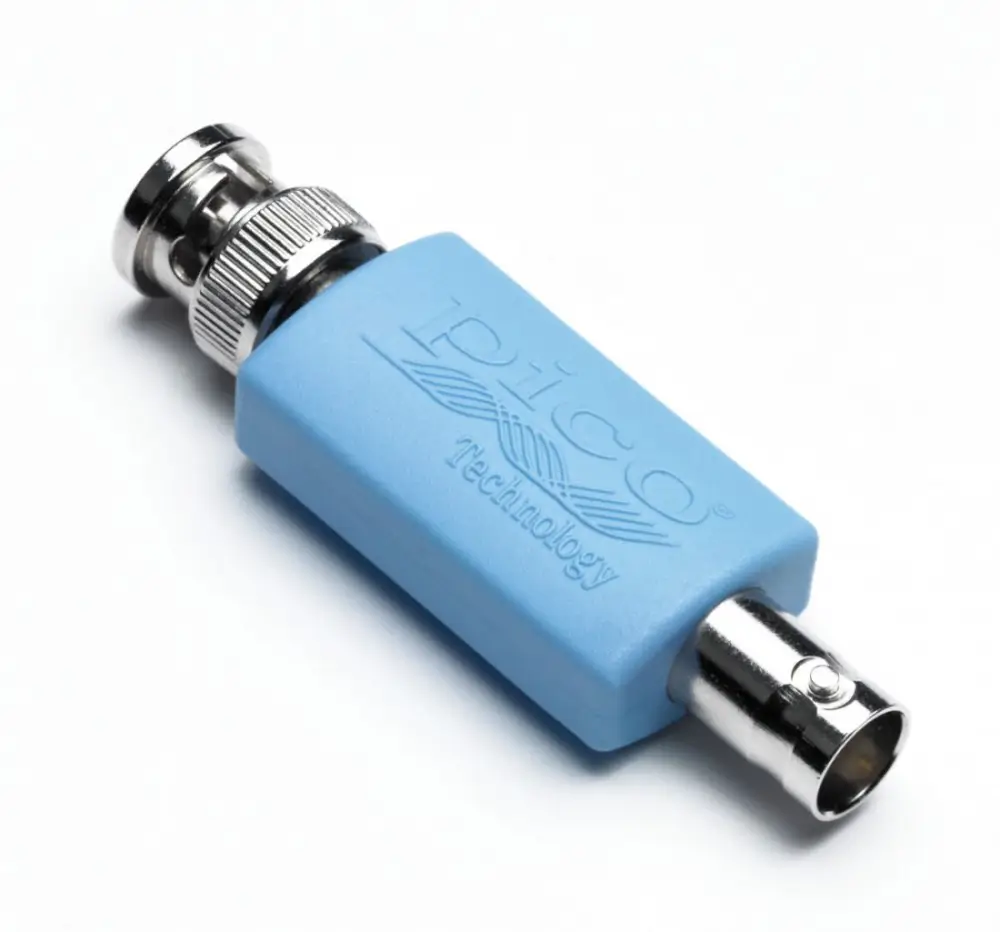

10:1 Attenuator

$ 72
Allows you to measure fuel injector and primary ignition voltage.
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    TA197
Need help?  Call the Nerdz!
Get support for your
10:1 Attenuator
when you join PicoGroup – access training, join our forum, and get support.
Click to learn more!

Other
Clips Probes and Adaptors
to consider

View all
Clips Probes and Adaptors
Not sure which kit is best for you?
Call the Nerdz!
We're here to help.

Bare Scope Module Only.

Support and essential components are not included!

You should generally only purchase bare modules as a replacement when you already own a kit.

For included training & support, or to get started with PicoScopes, check out our kits.

Bare scope modules do not come with an Autonerdz Training & Support subscription.

Questions before you buy?
Call the Nerdz!
We'll help you choose the right kit the first time.

With high bandwidth and fault protection, the 10:1 attenuator allows you to measure fuel injector and primary ignition waveforms using PicoScope oscilloscopes. The TA197 is a passive 10:1 attenuator. This means that, for example, a 10 V signal at its input appears as a 1 V signal on its output. It allows voltages of up to 400 V at its input. It is designed for ground-referenced signals only, as it attenuates the signal path but not the ground path. The TA197 attenuator also increases the input impedance of the oscilloscope from 1 M to 8 M, so can be used when measuring the output of high-impedance sensors such as piezo knock sensors where connecting an automotive scope can attenuate the signal or induce a fault code. Note: When using a PicoScope 4225, 4425, 4225A or 4425A oscilloscope, the attenuator is not normally needed for measuring injectors as the voltage spike is usually under 200 V. It will be required, however, when using older generations of PicoScopes that measure to only 50 V or 100 V. The 10:1 attenuator is an improved version of the 20:1 attenuator previously available from Pico.
