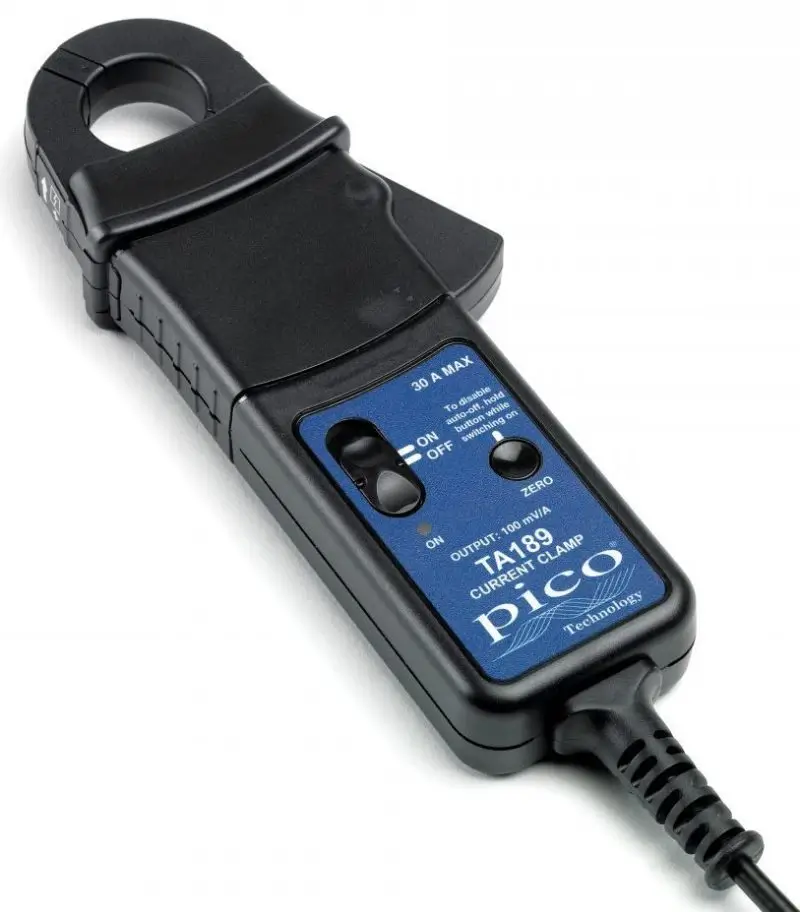

30 A (low Amps) AC/DC large-jaw current clamp (TA189)

$ 539
The 30 A precision current clamp allows you to measure from 5 mA up to 30 A without cutting, disconnecting or stripping the wire
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    TA189
Need help?  Call the Nerdz!
Get support for your
30 A (low Amps) AC/DC large-jaw current clamp (TA189)
when you join PicoGroup – access training, join our forum, and get support.
Click to learn more!

Other
Current Clamps
to consider

PicoBNC+ 60A AC/DC current clamp
$ 340
PicoBNC+ 2000 A AC/DC current clamp
$ 340
30 A (low Amps) AC/DC large-jaw current clamp (TA189)
$ 539
200 A / 2000 A AC/DC current clamp
$ 309
20A/60A AC/DC (low amps) current clamp (TA018) (f/k/a PP264)
$ 133
PicoBNC+ current clamp: 100A AC/DC
$ 696
View all
Current Clamps
Not sure which kit is best for you?
Call the Nerdz!
We're here to help.

The 30 A precision current clamp allows you to measure from 5 mA up to 30 A without cutting, disconnecting or stripping the wire. It is ideal for measuring the currents in sensors and actuators across most modern passenger and commercial vehicles. The TA189 provides improved sensitivity, lower noise and faster response. Featuring a 25 mm jaw size this clamp is suitable for measuring battery drain over long periods. It also features an auto power-down facility to save battery life when not in use (this feature can be disabled for battery drain / shutdown current testing). Using advanced Hall Effect sensors for improved sensitivity and high external field rejection as well as closed loop control for increased accuracy, the TA189 delivers a breakthrough in range and accuracy to meet the challenges of modern vehicles. These current clamps have been designed for use with PicoScope oscilloscopes and feature additional screening to reduce noise pickup.

Contents

No items found.

Bare Scope Module Only.

Support and essential components are not included!

You should generally only purchase bare modules as a replacement when you already own a kit.

For included training & support, or to get started with PicoScopes, check out our kits.

Bare scope modules do not come with an Autonerdz Training & Support subscription.

30 A (low Amps) AC/DC large-jaw current clamp (TA189)
 is available in these kits:

No items found.
