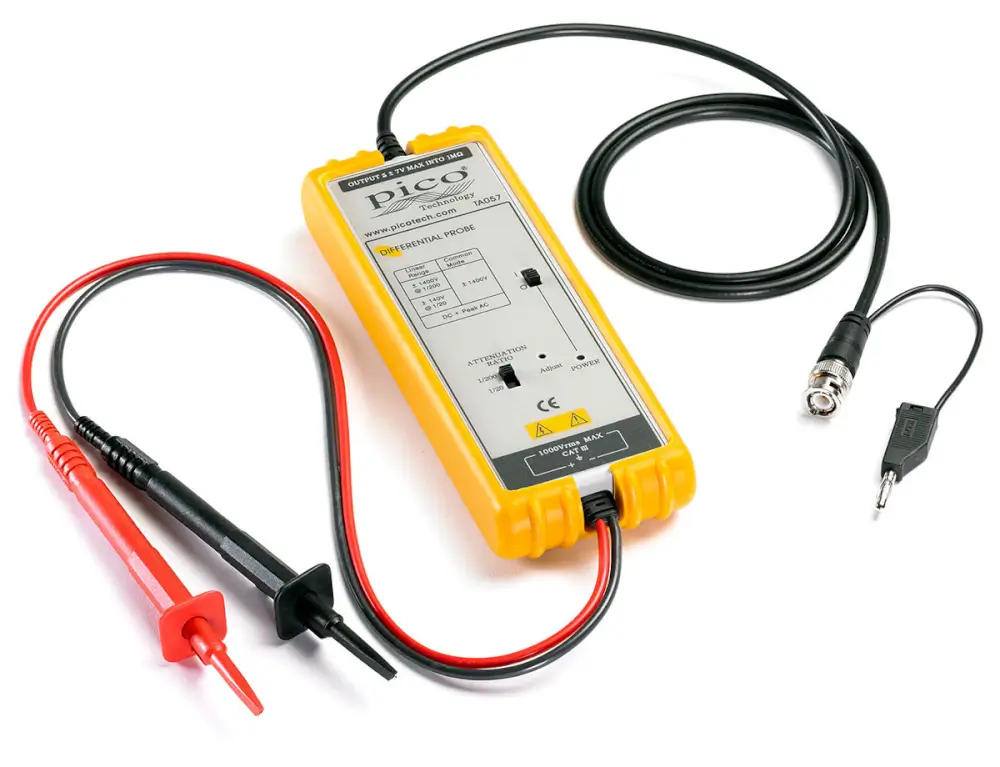

The TA057 active differential oscilloscope probe lets you use a standard earthed oscilloscope to measure signals that are not referenced to ground.
| Specifications | |
| -------------------------- | ----------------------------------------------------------------------------------- |
| Attenuation ranges | 20:1 / 200:1 |
| Differential voltage range | 140 V (DC + peak AC)or 140 V RMS (1/20)1400 V (DC + peak AC)or 1400 V RMS (1/200) |
| Common-mode voltage range | 1400 V (DC + peak AC)or 1400 V RMS (1/20 and 1/200) |
| Bandwidth | DC to 25 MHz (3 dB) |
| Input impedance | 4 M / 5.5 pF each side to ground |
| Power requirements | 4 x AA cellsor 6 V / 60 mA DC mains adaptor |
You should generally only purchase bare modules as a replacement when you already own a kit.
For included training & support, or to get started with PicoScopes, check out our kits.
Bare scope modules do not come with an Autonerdz Training & Support subscription.
