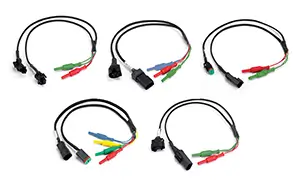

This breakout lead kit lets you take voltage readings from the multipin sensors and actuators in the engine compartment. Simply connect the appropriate breakout lead into the existing cable loom, and then take the output signal from the 4 mm banana plugs into the automotive oscilloscope using one of the TA125 to TA128 premium test leads. The breakout leads give access to the individual wires to allow probing with current clamps. The following 5 breakout leads are supplied as part of the kit:
