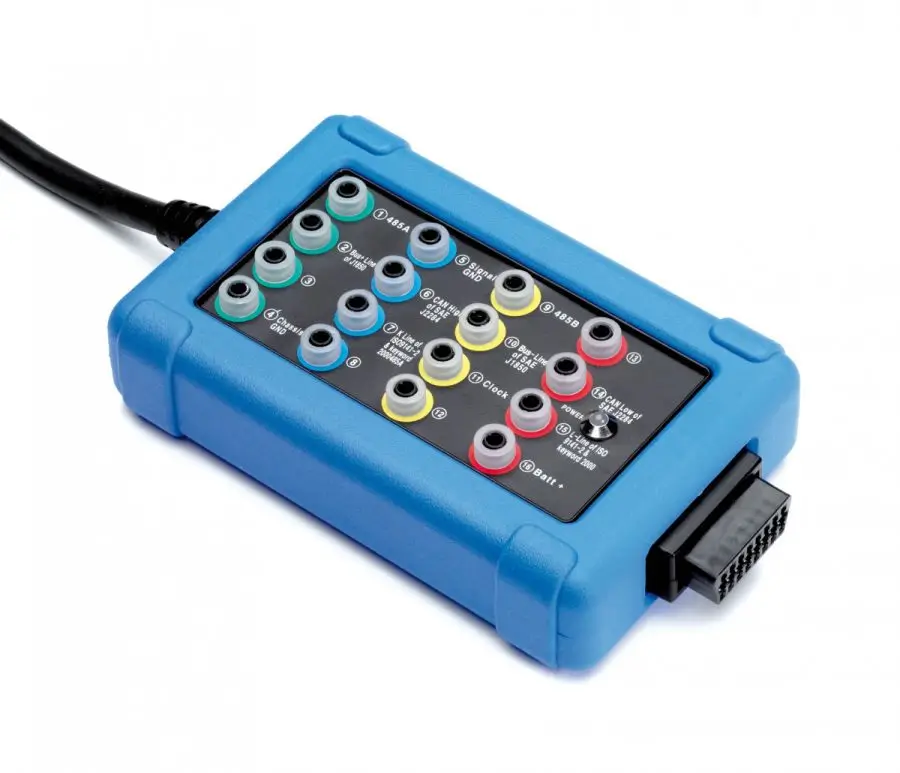

The CAN Test Box gives you easy access to the 16 pins of the diagnostic connector that is fitted to all modern vehicles. Depending on the configuration of the vehicle, this may allow you to check power, ground and CAN Bus signal quality. With the test adaptors supplied you can connect your PicoScope automotive scope, or any other suitable scope, to the CAN Test Box to monitor any signals present, such as the CAN High and Low signals. The CAN Test Box connects to a vehicle's OBDII / EOBD connector and lets you easily diagnose electrical faults.
You should generally only purchase bare modules as a replacement when you already own a kit.
For included training & support, or to get started with PicoScopes, check out our kits.
Bare scope modules do not come with an Autonerdz Training & Support subscription.
