Mixmaster 12-Channel Automotive Signal Mixer

$ 454
View an ignition parade display of up to 12 cylinders on a lab scope.
Shipping delays may impact this item.
Due to recent events affecting shipping and logistics, some items may be temporarily delayed or out of stock—we appreciate your patience.
This is a bare module (Scope Only).
You should generally only purchase bare modules as a replacement when you already own a kit. For included training & support, or to get started with PicoScopes, check out our kits.
  • Dimensions
    in x
    in x
    in
  • Weight
    oz
  • SKU
    PP361
Need help?  Call the Nerdz!
Get support for your
Mixmaster 12-Channel Automotive Signal Mixer
when you join PicoGroup – access training, join our forum, and get support.
Click to learn more!

Other
Ignition Testing
to consider

PicoBNC+ COP and signal probe
$ 236
PicoBNC+ secondary ignition pickup
$ 74
Coil On Plug and Signal Probe with Cable
$ 212
Secondary ignition pickup
$ 65
HT Extension Lead
$ 49
HT Extension Lead
$ 202
View all
Ignition Testing
Not sure which kit is best for you?
Call the Nerdz!
We're here to help.

Use with a a 4 or 8 channel scope for best results.

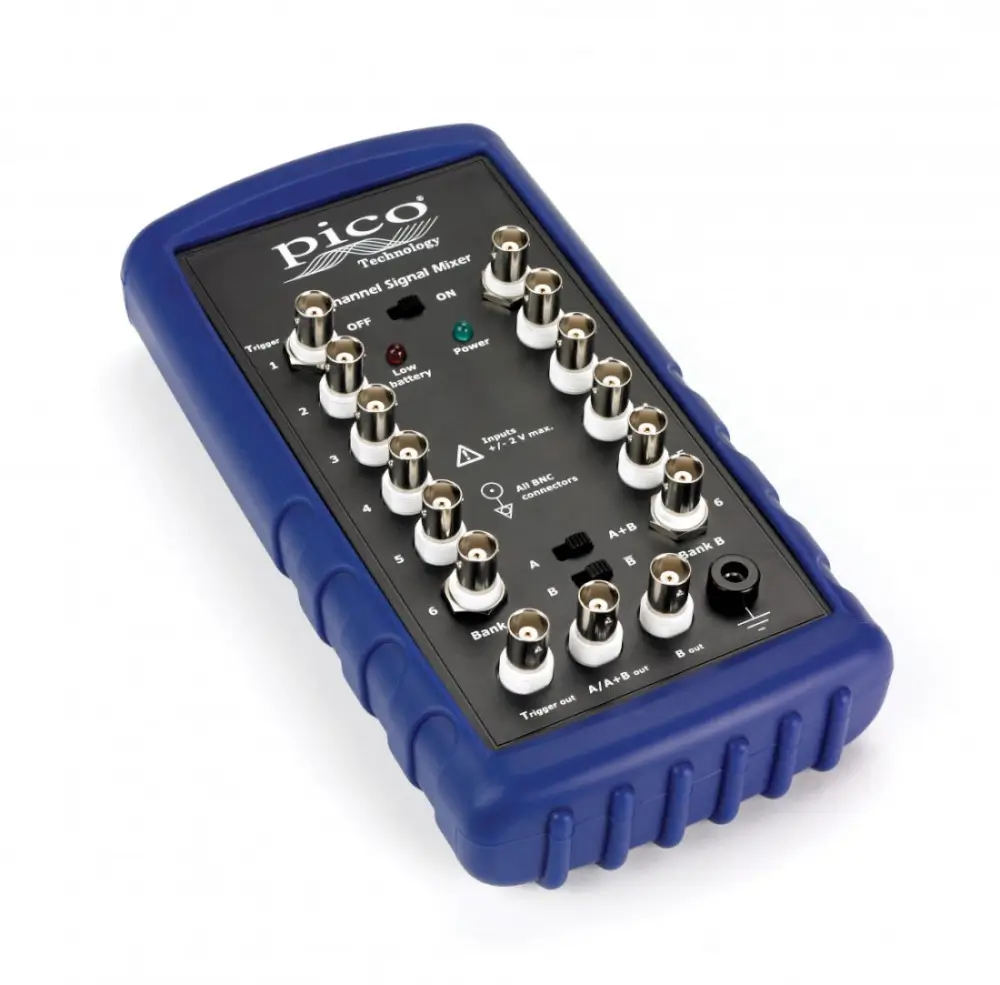

Mixmaster can produce a parade display of up to 12 cylinders using a single channel of your lab scope. If you have a 2-channel scope, then Mixmaster can also display 2 engine banks separately with up to 6 cylinders per bank. A third channel is required to sync a cylinder for firing order reference.

Mixmaster includes a trigger output, derived from one of the 12 input signals, which can be used to synchronise the scope to a known cylinder. Additionally, Mixmaster features a simple switch so you can invert a bank of signals to deal with negative-going signals on waste-spark systems.

We do not recommend using the Mixmaster on distributor systems, the Mixmaster is most effective on waste spark systems.

Mixmaster is battery powered and includes a low-battery indicator. The shockproof rubber case makes Mixmaster suitable for heavy-duty workshop use and incorporates a handy stand to make it easier to use.

Mixmaster is a cost-effective way to display parade ignition waveforms on your lab scope. Compact and battery powered, it is ideal for mobile automotive diagnostics, and makes a valuable and inexpensive addition to your tool kit.

Use a Snap On Scope? Mixmaster works great with Snap On. The attenuation on the Mixmaster is 10,000:1. This compares with the Snap-On secondary probes attenuation of 5000:1. Snap On has no way to set up a different range for scaling other secondary probes. So, roughly double the given readings from a Mixmaster to get true KV.
