01 volvo (Read 3,848 times)

Eric Krebs Junior Member Picogroup Offline Posts: 50 Gender:	01 volvo Jul 9^th, 2012 at 8:44pm exhaust valve closing too soon or not opening enough? What do you think?

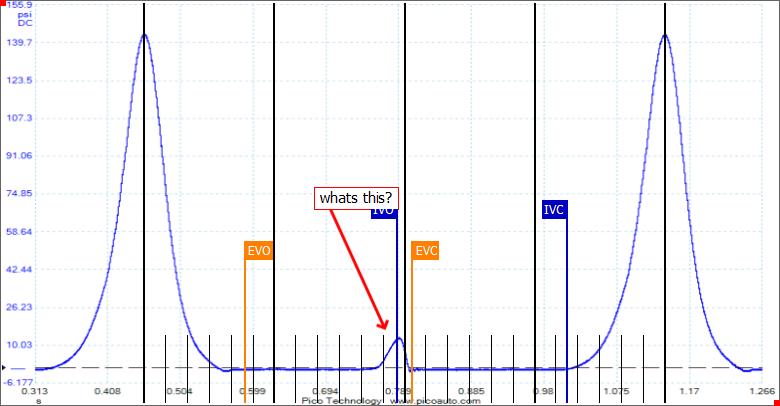

Back to top	volvo2crank.psdata (261 KB \| ) volvo-cranking.jpg (42 KB \| ) IP Logged

PRESTON

LSD Guide
Picogroup

Offline

"Fix like a champion today"

Posts: 4,961

Jensen Beach
Florida
USA
Gender: male

Re: 01 volvo
Reply #1 - Jul 9^th, 2012 at 10:15pm

Do you have any running captures? Cam crank sensor captures? Codes, fuel trims, any other info. Off hand and at first glance it kinda looks like the exhaust cam is opening and closing early, but it's hard to tell during the cranking capture. Compression seems to be lower than I would have thought, so that would make sense. What are the vehicle specifics, engine size, mileage, customer complaint, blah blah blah. Also, you may want to actually start a thread in the general technical discussion, as the items posted here on the test board get wiped off into oblivion every once in a while.

Rogue Nerd in South FL

WWW

IP Logged

PRESTON

LSD Guide
Picogroup

Offline

"Fix like a champion today"

Posts: 4,961

Jensen Beach
Florida
USA
Gender: male

Re: 01 volvo
Reply #2 - Jul 9^th, 2012 at 10:20pm

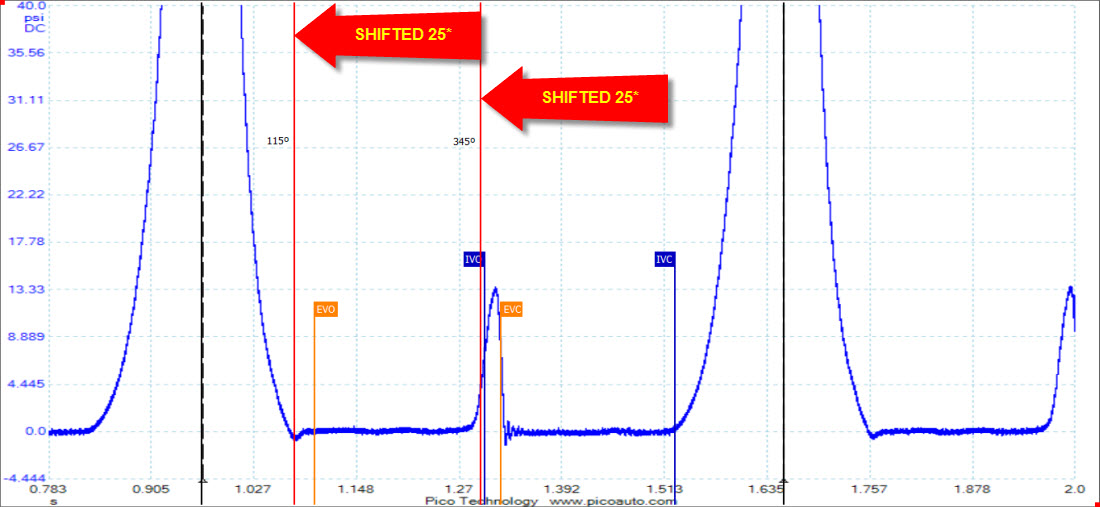

Here's is an extremely zoomed in picture of the bottom of the waveform focusing on the valve events. The flags are general rule of thumb standard locations for the valves to open and close, and the vertical red cursors that are labeled, are placed 25* before were the general exhaust valve events typically occur. I only used the number 25 because it's a sort of whole number and I have OCD at times Wink

, but it gets you close. Depending on how many teeth are on the cam and crank gears, you could narrow it down further.


Rogue Nerd in South FL

WWW

IP Logged

Eric Krebs Junior Member Picogroup Offline Posts: 50 Gender:	Re: 01 volvo Reply #3 - Jul 9^th, 2012 at 11:03pm just testing how to upload, but since u asked.
Back to top	volvo3running.psdata (329 KB \| ) IP Logged

Eric Krebs Junior Member Picogroup Offline Posts: 50 Gender:	Re: 01 volvo Reply #4 - Jul 9^th, 2012 at 11:08pm oh, by the way it's a p0303 but #2 looks very similar. 01 volvo 2.4l non turbo.
Back to top	IP Logged
