Used PicoScope 4223 2-Channel Automotive Scope (Read 18,909 times)
mikeynorman
Freshman Member
*
Offline



Posts: 32

Gender: male

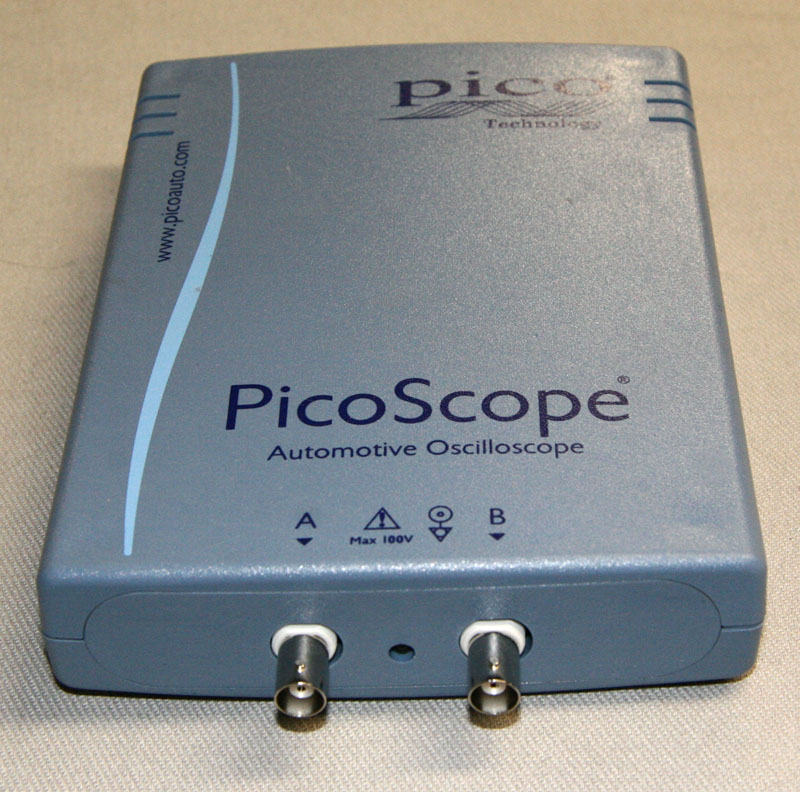

Used PicoScope 4223 2-Channel Automotive Scope
Oct 19th, 2013 at 1:33pm

Scope Module only.† $600 or Best offer.
Back to top
« Last Edit: Oct 20th, 2013 at 12:56pm by mikeynorman »


IP Logged

Tom Roberts
Autonerdz Administrator
Picogroup
*****
Offline


Autonerdz

Posts: 8,469

Olympia, WA, Washington, USA
Olympia, WA
Washington
USA

Gender: male
Re: New PicoScope 4223 2-Channel Automotive Scope
Reply #1 - Oct 19th, 2013 at 4:28pm


Mikey,

Are you sure that's a 4223?  Looks like a 4224.

Should be on a tag on the back or you can see the model under Help/About in the software when it is attached.
Back to top


Tom Roberts
Forums Administrator
http://www.autonerdz.com
WWW WWW autonerdz autonerdz
IP Logged

mikeynorman
Freshman Member
*
Offline



Posts: 32

Gender: male
Re: New PicoScope 4223 2-Channel Automotive Scope
Reply #2 - Oct 19th, 2013 at 4:52pm

Thank You Mr. Roberts,
Yes it is a 4224 on the box.† Are there any differences that you are aware of so that I may revise the Classified listing.† Thank You for the heads up.

According to Picoauto, the difference is this will not have the Automotive Software CD in the box.† However the Software is available for download free at their website. Hardware is excatly the same between the two.
Back to top
« Last Edit: Oct 19th, 2013 at 5:09pm by mikeynorman »

IP Logged

Danny Berry, Sr.
Super Nerd
Picogroup
*****
Offline


Elevation 840ft

Posts: 701

McDonough, Ga., Georgia, USA
McDonough, Ga.
Georgia
USA

Gender: male
Re: New PicoScope 4223 2-Channel Automotive Scope
Reply #3 - Oct 19th, 2013 at 7:34pm

I'm confused..I thought the the 2 and 4 channel 4000 series scopes both  begin with 4 and end with 23   ...and the 2nd digit was the number of channels? So..why wouldn't it be a 4223 like it shows in the picture? Huh
Back to top


IP Logged

Tom Roberts
Autonerdz Administrator
Picogroup
*****
Offline


Autonerdz

Posts: 8,469

Olympia, WA, Washington, USA
Olympia, WA
Washington
USA

Gender: male
Re: New PicoScope 4223 2-Channel Automotive Scope
Reply #4 - Oct 20th, 2013 at 12:26pm


Mikey,

The 4224 is the test and measurement scope, not the automotive one.  It will not work with the automotive software.

I just noticed that it didn't say Automotive on the scope case.  But I have seen them with the wrong cases on them before....
Back to top


Tom Roberts
Forums Administrator
http://www.autonerdz.com
WWW WWW autonerdz autonerdz
IP Logged

mikeynorman
Freshman Member
*
Offline



Posts: 32

Gender: male
Re: Used PicoScope 4223 2-Channel Automotive Scope
Reply #5 - Oct 20th, 2013 at 12:59pm

Thank You Mr. Roberts for the heads up.  Since I have each unit here I have placed the 4223 Scope up for sale if any one is intrested.  Unlike the other one it is used and not new.   Thanks again Mr. Roberts for your help and good eye on this.
Back to top


IP Logged

Seans
Freshman Member
*
Offline


I'm an Autonerd

Posts: 1

Boca Raton, Florida, USA
Boca Raton
Florida
USA

Gender: male
Re: Used PicoScope 4223 2-Channel Automotive Scope
Reply #6 - Dec 22nd, 2013 at 6:14am

I have been able to get these to work with the automotive software if anyone needs just call me. Shocked
Back to top


IP Logged

mikeynorman
Freshman Member
*
Offline



Posts: 32

Gender: male
Re: Used PicoScope 4223 2-Channel Automotive Scope
Reply #7 - Jan 13th, 2014 at 9:23pm

You are right Seans.  I have found that once you install the Pico Automotive Software; you simply remove the OEM.dll file and any scope model will work with the software just fine.  I'm currently using the 4224 scope that's labeled oscilloscope with the Automotive Software with no problems.
Back to top


IP Logged

Tom Roberts
Autonerdz Administrator
Picogroup
*****
Offline


Autonerdz

Posts: 8,469

Olympia, WA, Washington, USA
Olympia, WA
Washington
USA

Gender: male
Re: Used PicoScope 4223 2-Channel Automotive Scope
Reply #8 - Jan 15th, 2014 at 10:15am

mikeynorman wrote on Jan 13th, 2014 at 9:23pm:
I'm currently using the 4224 scope that's labeled oscilloscope with the Automotive Software with no problems.


You are a lucky guy.  A ground loop can be fatal.  Only the automotive scopes have thermal fuse protection.
Back to top


Tom Roberts
Forums Administrator
http://www.autonerdz.com
WWW WWW autonerdz autonerdz
IP Logged

Rik Alleman
Freshman Member
*
Offline


I'm an Autonerd

Posts: 3

Nootdorp, Netherlands
Nootdorp
Netherlands

Gender: male
Re: Used PicoScope 4223 2-Channel Automotive Scope
Reply #9 - Feb 5th, 2014 at 1:06pm

Hi Tom
Would you mind explaining this ground loop thing ?
Thank you
Rik
Back to top


IP Logged

Tom Roberts
Autonerdz Administrator
Picogroup
*****
Offline


Autonerdz

Posts: 8,469

Olympia, WA, Washington, USA
Olympia, WA
Washington
USA

Gender: male
Re: Used PicoScope 4223 2-Channel Automotive Scope
Reply #10 - Feb 5th, 2014 at 1:47pm

Rik Alleman wrote on Feb 5th, 2014 at 1:06pm:
Would you mind explaining this ground loop thing ?


Sure...short version:

Because the scope grounds are common (connected together inside the scope) you can create ground loops with your channel grounds that can pass current from one ground point to another, ground out a sensor, etc.† This why any and all grounds should be placed on a common point, preferably bat neg.

Should you place one channel ground on a voltage source and another on a ground point a potentially large current will flow through the scope.† Don't laugh.† It happens more often than you think.† The automotive scopes have resetting thermal fuses to protect the scope from damage should this occur.† The test and measurement versions do not and you only make that mistake once and the special smoke comes out.† †Smiley

Back to top
« Last Edit: Feb 5th, 2014 at 2:13pm by Tom Roberts »

Tom Roberts
Forums Administrator
http://www.autonerdz.com
WWW WWW autonerdz autonerdz
IP Logged

Rik Alleman
Freshman Member
*
Offline


I'm an Autonerd

Posts: 3

Nootdorp, Netherlands
Nootdorp
Netherlands

Gender: male
Re: Used PicoScope 4223 2-Channel Automotive Scope
Reply #11 - Feb 5th, 2014 at 1:57pm

Thanks Tom , for the explanation
Rik
